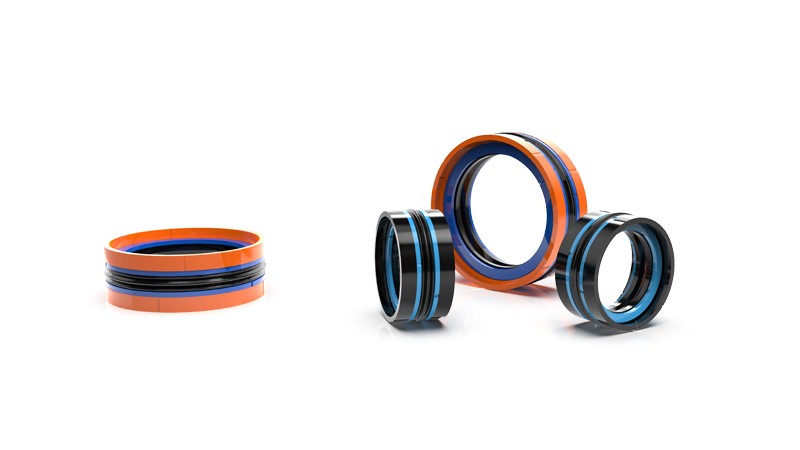

DAS Compact Piston Seals Orange
Brand :INDEL
Product origin :Yueqing City,Zhejiang,CHINA
Delivery time :10-15 days
Supply capacity :350 thousands
We make new size of DAS SEAL ORANGE color for our customer from Dubai.
For our sizes,most of them have enough stocks.It will keep timely delivery.Most order will be sent out within 3-7 days.That's why we have many agents in many province in China.
DAS Compact Piston Seals Orange Parameter
1.Working Temperature: -30℃~+120℃
2.Max Working Pressure: 35MPa
3.Double acting sealing functions
4.Max Run Rate: 0.5m/s
5.Imported material
DAS Compact Piston Seals Orange Function
Hydraulic piston seals prevent fluid from flowing across the cylinder head whereas the Rod seals prevent leakage of fluid from within the cylinder to the outside.
DAS Compact Piston Seals Orange Applications
All Hydraulic and Pneumatic Cylinder
It is a combination seals used in hydraulic applications as well as some heavy industries.
DAS Compact Piston Seals Orange Advantages
PU&NBR Imported.
Easy to install no tools need.
Blue and Orange color for your choice.
Double acting compact sealing effect.
Middle thick rubber are strong and good sealing effect.
Available Sizes
| 20*11*17.7 | 22*13*17.7 | 25*15*20.5 | 25*15*29.1 | 25*16*17.7 |
| 28*19*17.7 | 30*21*17.7 | 32*22*20.7 | 32*22*29.1 | 32*24*21.9 |
| 35*25*20.7 | 35*25*29.1 | 40*24*31.1 | 40*26*20.7 | 40*30*29.1 |
| 40*30*20.5 | 42*28*20.7 | 45*29*31.1 | 45*31*20.7 | 45*35*29.1 |
| 50*34*26.7 | 50*34*31.1 | 50*38*28.9 | 55*39*26.7 | 55*39*31.1 |
| 56*40*26.7 | 60*44*26.7 | 60*44*31.1 | 60*48*28.9 | 63*47*32.1 |
| 63*47*26.7 | 63*47*31.1 | 63*51*28.9 | 65*49*26.7 | 65*50*31.1 |
| 70*50*35.1 | 70*54*26.7 | 70*58*28.9 | 75*55*35.1 | 80*60*35.1 |
| 80*62*29.7 | 80*66*32.9 | 85*65*35.1 | 90*70*35.1 | 90*72*29.7 |
| 90*76*32.9 | 95*75*35.1 | 100*80*37.7 | 100*75*35.1 | 100*82*29.7 |
| 100*86*32.9 | 105*80*35.1 | 110*85*35.1 | 110*92*29.7 | 110*96*32.9 |
| 115*90*35.1 | 115*97*29.7 | 120*95*35.1 | 120*106*32.9 | 125*100*38.1 |
| 125*103*36.7 | 125*108*40.9 | 130*105*38.1 | 130*105*44.4 | 135*110*44.4 |
| 135*110*38.1 | 140*115*44.4 | 140*115*38.1 | 140*123*40.9 | 140*118*36.7 |
| 145*120*38.1 | 145*120*44.4 | 150*125*44.4 | 150*125*38.1 | 150*128*36.7 |
| 150*133*40.9 | 155*130*44.4 | 160*130*38.1 | 160*135*44.4 | 160*143*40.9 |
| 160*138*36.7 | 165*140*44.4 | 170*145*50.8 | 175*150*50.8 | 180*155*50.8 |
| 180*150*48.1 | 185*160*50.8 | 190*165*50.8 | 195*170*50.8 | 200*175*50.8 |
| 210*185*50.8 | 220*190*48.1 | 220*195*50.8 | 230*205*50.8 | 240*215*50.8 |
| 250*225*50.8 | 250*220*48.1 | 260*235*60.5 | 270*245*50.8 | 275*250*48.3 |
| 280*250*54.44 | 280*255*50.8 | 300*275*50.8 | 320*290*54.44 | |
| 320*295*50.8 | 360*335*50.8 | 380*355*50.8 | 400*375*50.8 | |
PACKING & SHIPMENT

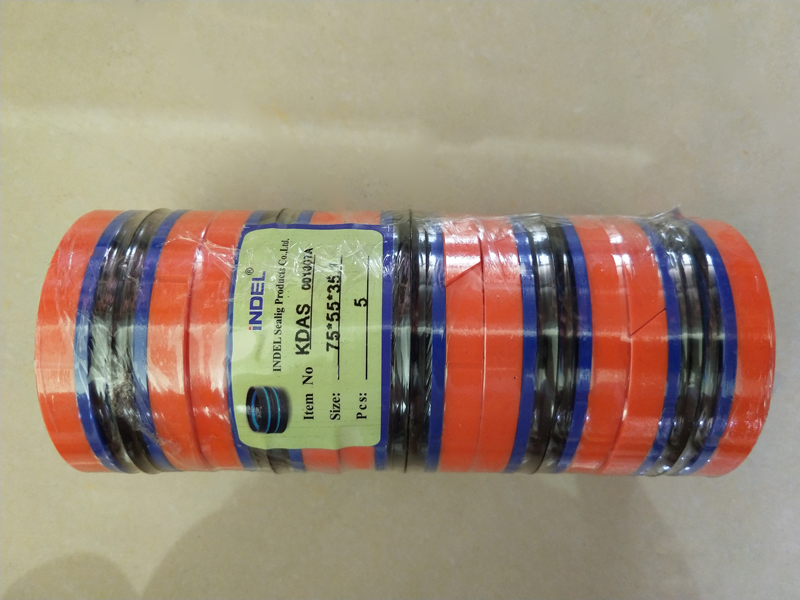

Standard export package,5 pcs/package.
It will be shipped by sea.
Delivery Time
It depends on your order details.In general,it takes 10-15 days to prepare.
MOQ
One package per item at least.
Company Locations
Yueqing City,Zhejiang,CHINA 325604
Packing Deatails
