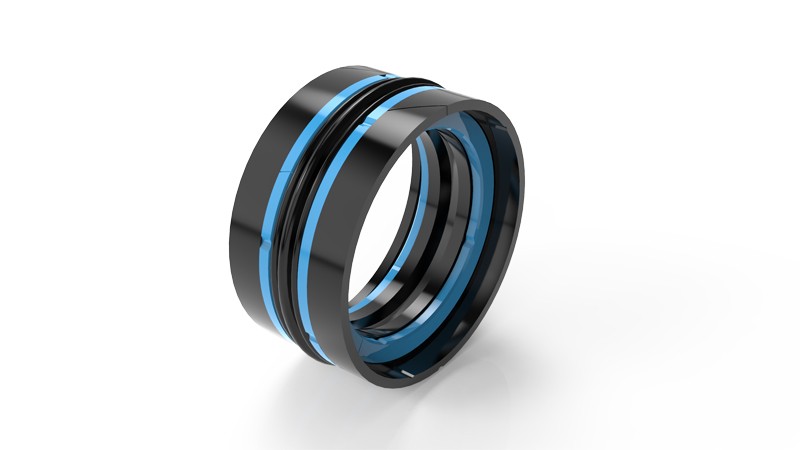

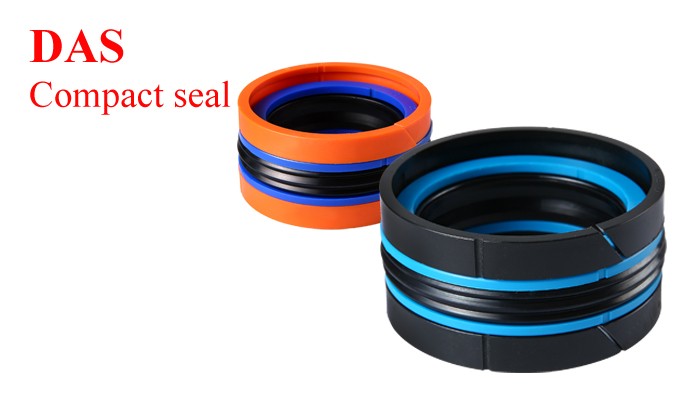

DAS Seal excavator seal
Brand :INDEL
Product origin :Yueqing City,Zhejiang,CHINA
Delivery time :10-15 days
Supply capacity :350 thousands
DAS Seal Parameter
1.Working Temperature: -30℃~+120℃
2.Max Working Pressure: 35MPa
3.Max Run Rate: 0.5m/s
DAS Seal Function
Hydraulic piston seals prevent fluid from flowing across the cylinder head whereas the Rod seals prevent leakage of fluid from within the cylinder to the outside.
DAS Seal Applications
All Hydraulic and Pneumatic Cylinder
It is a combination seals used in hydraulic applications as well as some heavy industries.
DAS Seal Advantages
PU&NBR Imported.
Double acting compact sealing effect.
Middle thick rubber are strong and good sealing effect.
Easy to install no tools need.
Blue and Orange color for your choice.
Available Sizes
| 20*11*17.7 | 22*13*17.7 | 25*15*20.5 | 25*15*29.1 | 25*16*17.7 |
| 28*19*17.7 | 30*21*17.7 | 32*22*20.7 | 32*22*29.1 | 32*24*21.9 |
| 35*25*20.7 | 35*25*29.1 | 40*24*31.1 | 40*26*20.7 | 40*30*29.1 |
| 40*30*20.5 | 42*28*20.7 | 45*29*31.1 | 45*31*20.7 | 45*35*29.1 |
| 50*34*26.7 | 50*34*31.1 | 50*38*28.9 | 55*39*26.7 | 55*39*31.1 |
| 56*40*26.7 | 60*44*26.7 | 60*44*31.1 | 60*48*28.9 | 63*47*32.1 |
| 63*47*26.7 | 63*47*31.1 | 63*51*28.9 | 65*49*26.7 | 65*50*31.1 |
| 70*50*35.1 | 70*54*26.7 | 70*58*28.9 | 75*55*35.1 | 80*60*35.1 |
| 80*62*29.7 | 80*66*32.9 | 85*65*35.1 | 90*70*35.1 | 90*72*29.7 |
| 90*76*32.9 | 95*75*35.1 | 100*80*37.7 | 100*75*35.1 | 100*82*29.7 |
| 100*86*32.9 | 105*80*35.1 | 110*85*35.1 | 110*92*29.7 | 110*96*32.9 |
| 115*90*35.1 | 115*97*29.7 | 120*95*35.1 | 120*106*32.9 | 125*100*38.1 |
| 125*103*36.7 | 125*108*40.9 | 130*105*38.1 | 130*105*44.4 | 135*110*44.4 |
| 135*110*38.1 | 140*115*44.4 | 140*115*38.1 | 140*123*40.9 | 140*118*36.7 |
| 145*120*38.1 | 145*120*44.4 | 150*125*44.4 | 150*125*38.1 | 150*128*36.7 |
| 150*133*40.9 | 155*130*44.4 | 160*130*38.1 | 160*135*44.4 | 160*143*40.9 |
| 160*138*36.7 | 165*140*44.4 | 170*145*50.8 | 175*150*50.8 | 180*155*50.8 |
| 180*150*48.1 | 185*160*50.8 | 190*165*50.8 | 195*170*50.8 | 200*175*50.8 |
| 210*185*50.8 | 220*190*48.1 | 220*195*50.8 | 230*205*50.8 | 240*215*50.8 |
| 250*225*50.8 | 250*220*48.1 | 260*235*60.5 | 270*245*50.8 | 275*250*48.3 |
| 280*250*54.44 | 280*255*50.8 | 300*275*50.8 | 320*290*54.44 | |
| 320*295*50.8 | 360*335*50.8 | 380*355*50.8 | 400*375*50.8 | |

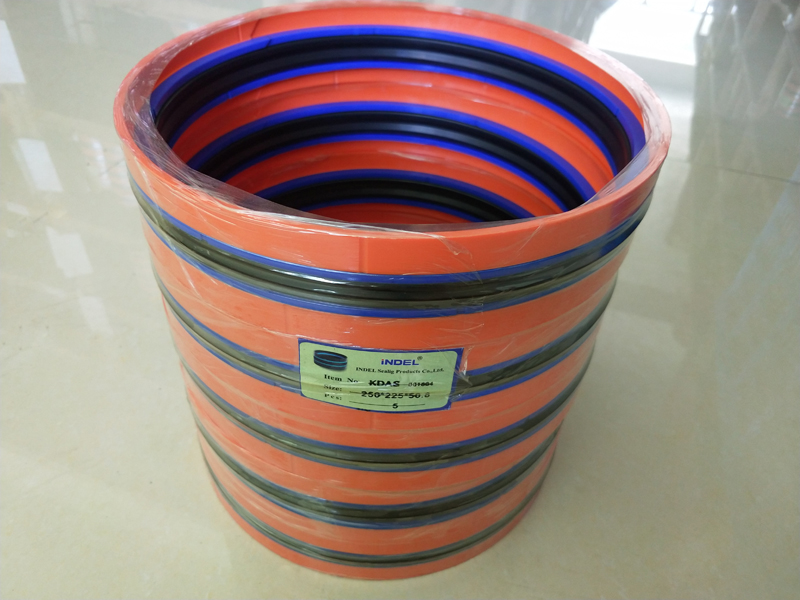

PACKING & SHIPMENT
Standard export package,5 pcs/package.
It will be shipped by sea.
Delivery Time
It depends on your order details.In general,it takes 10-15 days to prepare.
MOQ
One package per item at least.
Company Locations
Yueqing City,Zhejiang,CHINA 325604
