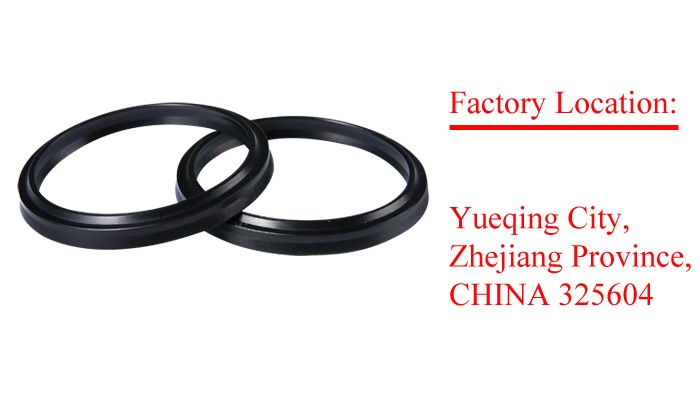

LBH Hydraulic Dust Seal
Brand :INDEL
Product origin :Yueqing City,Zhejiang,CHINA
Delivery time :10-15 days
Supply capacity :350 thousands
LBH Hydraulic Dust Seal Parameter
1.Working Temperature: -35℃~+100℃
2.Max Run Rate: 1m/s
3.Shore hardness 90A
LBH Hydraulic Dust Seal Function
Double Lips Dust Seals,it is a double acting dust seal.
LBH Hydraulic Dust Seal Applications
All Hydraulic Cylinder and Pneumatic groove.
LBH Hydraulic Dust Seal Advantages
NBR material Imported from Japan.
Durable resistance.
Adopt auto edge handling technology.
Easy to install no tools need.
Black color for your choice.
Available Sizes
| 11.2*19.2*4.5/6 | 12*20*4.5/6 | 12.5*20.5*4.5/6 | 14*22*4.5/6 | |
| 16*24*4.5/6 | 18*26*4.5/6 | 20*28*4.5/6 | 22*30*4.5/6 | |
| 22.4*30.4*4.5/6 | 23.5*31.5*4.5/6 | 25*33*4.5/6 | 28*36*4.5/6 | |
| 30*38*4.5/6 | 31.5*39.5*5/6.5 | 32*40*5/6.5 | 35*43*5/6.5 | |
| 35.5*43.5*5/6.5 | 38*46*5/6.5 | 40*48*5/6.5 | 45*53*5/6.5 |
| 48*56*5/6.5 | 50*58*5/6.5 | 53*61*5/6.5 | 55*63*5/6.5 | 56*64*5/6.5 |
| 58*66*5/6.5 | 60*68*5/6.5 | 63*71*5/6.5 | 65*73*5/6.5 | 67*75*5/6.5 |
| 70*80*6/8 | 71*81*6/8 | 75*85*6/8 | 80*90*6/8 | 85*95*6/8 |
| 90*100*6/8 | 95*105*6/8 | 98*108*6/8 | 100*110*6/8 | 105*115*6/8 |
| 110*120*6/8 | 112*122*6/8 | 115*125*6/8 | 120*133*7/9.5 | 125*138*7/9.5 |
| 136*149*7/9.5 | 140*153*7/9.5 | 145*158*7/9.5 | 150*163*7/9.5 | |
| 160*173*7/9.5 | 165*178*7/9.5 | 175*188*7/9.5 | 180*193*7/9.5 | |
| 200*213*7/9.5 | 205*218*7/9.5 | 210*223*7/9.5 | 224*237*7/9.5 | |
| 240*256*10/13 | 250*266*10/13 | |||
PACKING & SHIPMENT
Standard export package.Quantity of each package,please see to above.
The goods will be shipped by sea.
Delivery Time
It depends on your order details.In general,it takes 10-15 days to prepare.
MOQ
one package per item at least.
Company Locations
Yueqing City,Zhejiang,CHINA 325604
Packing Deatails
