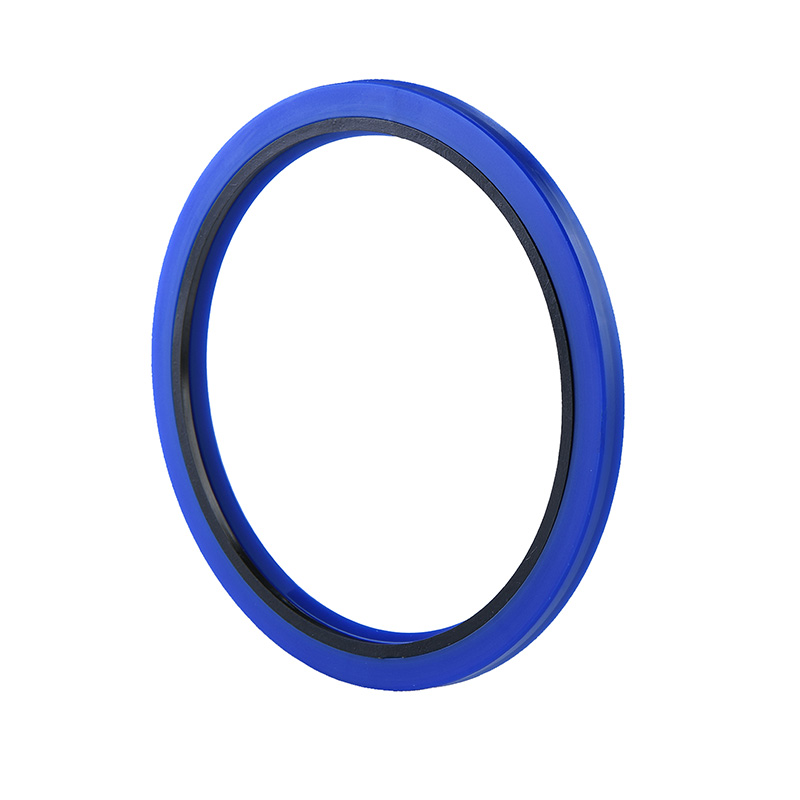

HBY Hydraulic Seals – Rod compact seals

Short Description:

HBY is a buffer ring, due to a special structure, facing the sealing lip of the medium reduce the remaining seal formed between the pressure transmission back to the system. It is made up of 93 Shore A PU and POM support ring. It is used as a primary sealing element in hydraulic cylinders. It should be used together with another seal. Its structure provides solutions to many problems such as shock pressure, back pressure and so on.


Product Detail

Product Tags

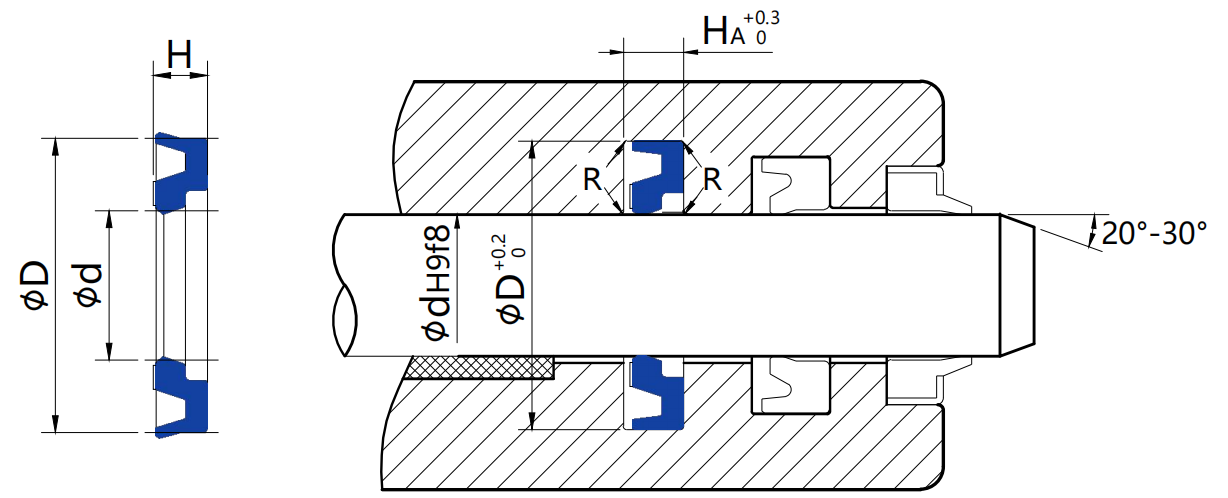

1696730088486
HBY-Hydraulic-Seals---Rod-compact-seals

Description

HBY Piston Rod Seal, known as the buffer seal ring, consists of a soft beige polyurethane seal and a hard black PA anti-extrusion ring added to the heel of the seal. In addition, Hydraulic Oil Seals are an integral component of most hydraulic systems and are generally made from elastomers, natural and synthetic polymers. Hydraulic oil seal provides exceptional water and air sealing capabilities, hydraulic seals are ring-shaped and primarily designed to eliminate or limit the leakage of fluid moving within a hydraulic or pneumatic system.HBY Piston Seal is used in conjunction with piston rod seals to absorb shock and fluctuating pressures under high loads, to isolate high-temperature liquids, and to improve seal durability.Hydraulic Rod Buffer Seal Ring HBY is used together with rod seal.In this way it can improve seal durability because after absorbing shock and wave in high load capacity it can be isolated from high temperature fluid.

Material

Lip seal: PU
Back up ring: POM
Hardness: 90-95 Shore A
Color: Blue, off-yellow and purple

Technical Data

Operation conditions
Pressure: ≤50 Mpa
Speed: ≤0.5m/s
Media: hydraulic oils(mineral oil-based)
Temperature:-35~+110℃

Advantages

- Unusually high wear resistance
- Insensibility against shock loads and pressure peaks
- High resistance against extrusion
- Low compression set
- Suitable for hardest working conditions
- Perfect sealing performance under low pressure even zero pressure
- Easy installation
